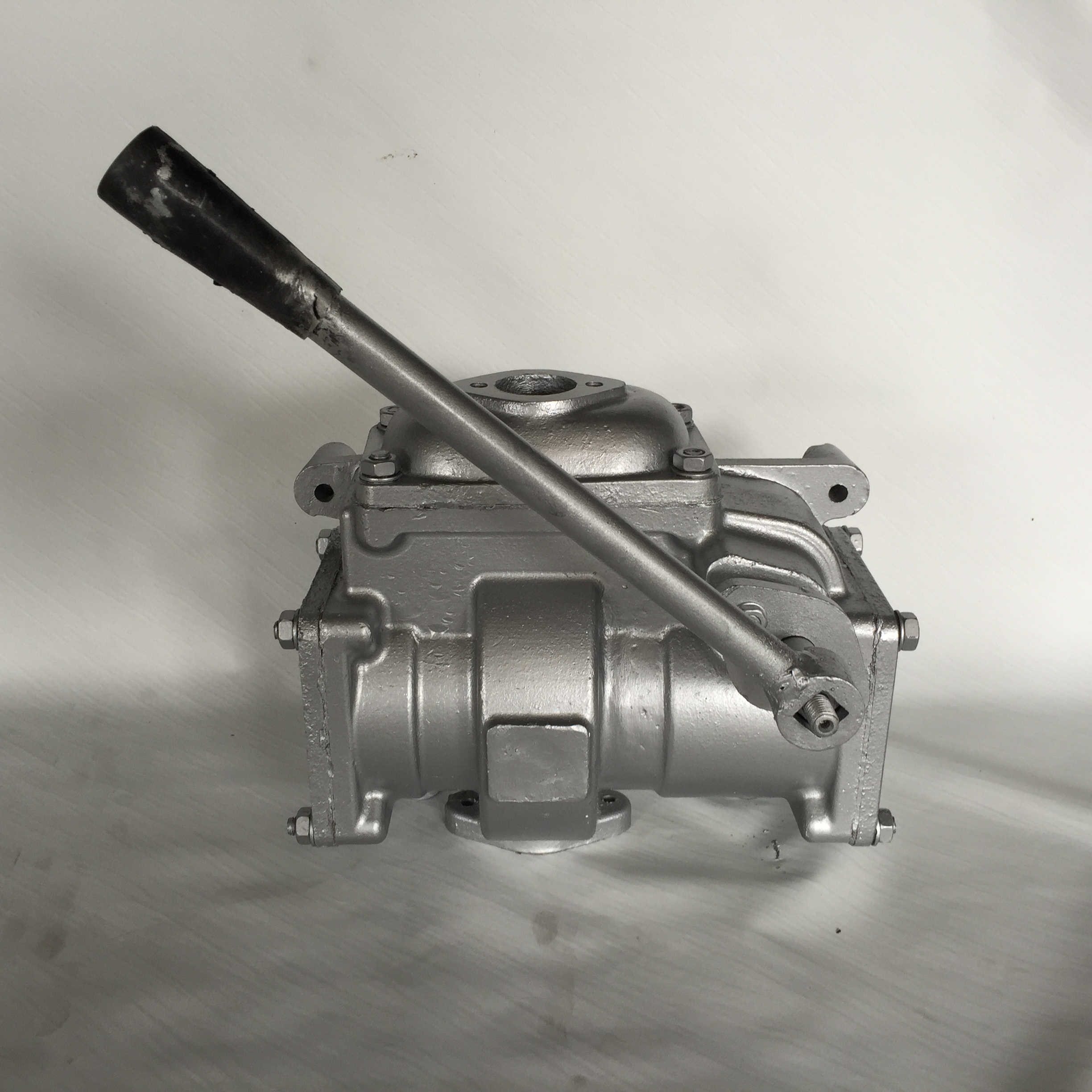

CS series oil hand pump marine pump
- Packaging:
- wooden case
- Transportation:
- Express,Ocean,Land,Air
Product Description
Product Description
CS series hand pump is suitable for pumping oil, lubricating oil, water and other liquids. It has the characteristics of small volume, light weight, good self-absorption performance and easy installation and use. And reasonable design, material stress, simple maintenance, important parts are treated by corrosion, is an ideal Marine pump.
Specification
Model | CS-40 Hand pump |
Flow(M3/H) | 3.9 |
Discharge pressure (Mpa) | 0.25 |
Suction Vacuum height(M) | 5 |
Piston Stroke(MM) | 100 |
Reciprocating frequency ( Time/min) | 50 |
Pump cylinder diameter( MM) | 102.3 |
Handle force (KG) | Around 33KG |
Inlet water diameter (MM) | 40 |
Unit weight(Kg) | 15KG |
Product Paramenters
Model | CS-40 Y/H |
A | 280 |
B | 245 |
C | 70 |
D | 260 |
E | 180 |
Part name | Material | Standard |
Pump body | aluminium alloy | GB1173-74 |
Piston | aluminium alloy | GB1173-74 |
Valve | Bronze | GB1220-75 |
Handle | Galvanized pipe and cast steel | YB 553-71 |
Use and maintenance: 1.1.Before use, remove the drain screws on both sides of the cover and the upper end cover, inject appropriate amount of lubricating oil, and shake the handle until the handle moves freely. 2.2.When working, the handle should be reciprocated by the maximum Angle. Before the pump inlet should be set filter, to prevent dirt into the pump affect the pump efficiency and service life or even damage parts. 3.3.When installing the pump, please check whether the valve in the upper cover of the pump is in the correct position, and shake the pump several times to see if there is any abnormality. If there is any abnormality, please replace it to us. 4.4.The oil seal cycle of this series of pumps is six months. If long - term use or long - term stop, should be cleaned and re - sealing.
Packing & Delivery
FAQ
1.How about the Delivery time? It is according to your order quantity 2.What kind of payments will be support? T/T,L/C,Western Union 3.What's the MOQ? Generally speaking, the MOQ is 10PCS, but we also can provide you samples for quality inspection. 4.Do you charge for the samples? According to our company policy,we just charge the samples based on EXW price.and we will return the samples fee during the next order.
Service
1.Any Inquiries will be replied within 24 hours
2.Professional manufacturer. 3.OEM/ODM available. 4.Hight quality,fashion designs,reasonable & competitive price. fast lead time.
5.After Sale Service:
1).All products well have been strictly Quality Checked in house before pecking.
2).All products will be well packed before shipping. 6.Faster delivery.
